A kill curve experiment is an essential procedure in plant transformation and regeneration, typically performed using non-transformed tissue that matches the type of tissue ​intended for transformation. This experiment helps in optimizing the conditions for successful selection and regeneration of transgenic plants.

Purpose of the Kill Curve Experiment

Determining Effective Antibiotic Concentration: The primary goal of a kill curve experiment is to determine the minimum effective concentration of an antibiotic, such as ​Kanamycin or Hygromycin, needed to suppress the growth of untransformed cells. This ensures that only transformed cells, which carry a selectable marker gene conferring ​antibiotic resistance, survive and proliferate.

Key Considerations

Optimal Concentration: Extremely low antibiotic concentrations can lead to ​escapes, where untransformed cells survive, while extremely high concentrations ​can cause rapid death of untransformed cells. The toxins released by these dead ​cells can be lethal to transformed cells, significantly reducing the regeneration ​frequency of transgenic plants. Therefore, a gradual cessation in the growth and ​development of non-transformed cells is ideal.

Regeneration Time: Based on my experience, the regeneration of stable transgenic ​plants takes almost twice as long as the regeneration of wild-type (untransformed) ​plants. This extended time may be due to the selection pressure and the integration ​of the transgene, potentially disrupting housekeeping or other developmental genes.

Importance of Kill Curve in Plant Transformation

Selection Efficiency: Accurate determination of antibiotic concentration ensures ​that only transformed cells with the desired traits survive. This increases the ​efficiency of selecting true transgenic events.

Avoiding Chimeric Plants: Using an optimal antibiotic concentration helps avoid the ​survival of partially transformed or non-transformed cells, reducing the risk of ​generating chimeric plants where only some cells contain the transgene.

Optimizing Regeneration Conditions: Establishing the kill curve helps in fine-tuning ​the tissue culture conditions, such as the type of medium and the duration of ​antibiotic exposure, to maximize the regeneration of healthy transgenic plants.

Experimental Observations: Kanamycin Kill Curve (Fig. 1)

Tobacco Leaf Discs (hypothetical) and Taro Embryogenic Cell Suspension (original work)

The minimum effective concentration of Kanamycin required to inhibit the growth of plated suspension cells of taro was found to be 100 mg/L. Cells showed gradual ​necrosis until week 7, by which time all cells had died.

While 150, 200, and 250 mg/L Kanamycin were also effective, necrosis occurred too rapidly (within two weeks) at 200 and 250 mg/L, with all cells necrotic by week 5. To ​ensure adequate selection, 150 mg/L Kanamycin was chosen for the selection of transformed tissue. Hygromycin was too toxic at all concentrations tested (10, 20, 30, 40, ​50 mg/L), with all cells turning necrotic within two weeks.

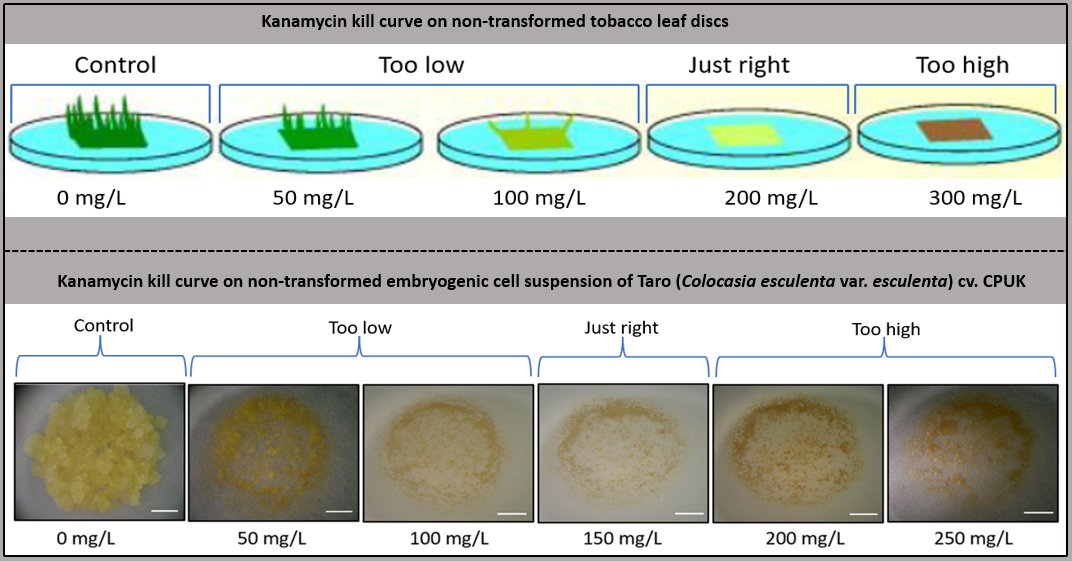

Figure 1: Kanamycin kill curve: Hypothetical (Top panel) and Experimental (Bottom panel) (Deo, 2008)
